| MOQ: | 1 module or 1 cabinet |
| Price: | Negotiable |
| Standard Packaging: | WoodenCase |
| Delivery Period: | 25 -30Working days |
| Payment Method: | T/T, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 5000SQM/Month |
High Brightness:
High-quality LEDs can reach 10,000 nits. The pixel pitch are P6, P8, P10;
High Resolution
Fine pixel pitches form high resolution, which can capture and hold the attention of passerby.
Visual Performance
High contrast: The contrast ratio of the LED screen gives a sharp image quality.
High brightness: The brightness of the LED Display can be up to 10,000 nits. Even the screen is facing directly sunlight, the image still looks clear.
Energy Saving
We use customized PCB and power supply, so average power consumption is less than 150W/sqm.
Compared with the similar products in the market. Our OA2 Series LED display saves 20% energy.
Ultra-Wide Viewing Angle
With a 140 degree wide viewing angle, the screen can be seen from as various positions as possible.
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.
The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.
3 layers of high-quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.
Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 24bits. It is very high so the image looks very vivid and perfect.

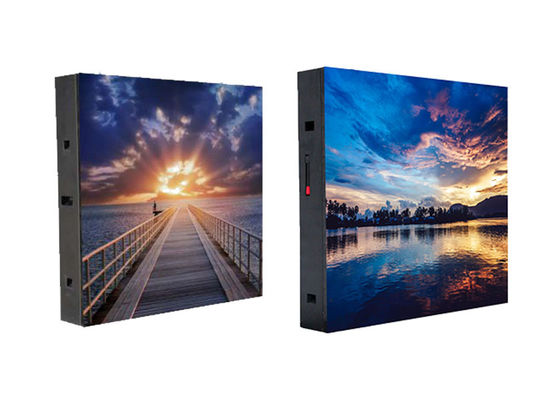

The LED display cabinet is made of steel material or aluminum material. We adopt the best materials and great crafts to manufacturing this LED display. Therefore, the LED screen functions are very stable in outdoor scenes.
We have sold many LED screens to different countries and regions like America, Europe, Middle East, Africa, etc.
Many of our screens have been working for more than 5 years, and they are still working properly. Our LED screens are a great solution for outdoor advertising billboards.
| Item | 10 | P8 | 6.67 | 5 |
|---|---|---|---|---|
| Pixel Pitch | 10mm | 8mm | 6.67mm | 5mm |
| Led Type | DIP | DIP | DIP | SMD |
| Module Resolution | 32dots x 16dots | 40dots x 20dots | 50dots x 25dots | 64dots x 32dots |
| Driving Mode | Static | 1/2 Scan | 1/6 Scan | 1/16 Scan |
| Module Pixels | 512 dots | 800 dots | 1250 dots | 2048dots |
| Module Size | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm |
| Cabinet Size | 960mm x 960mm | 960mm x 960mm | 960mm x 960mm | 960mm x 960mm |
| Cabinet Resolution | 96dots x 96dots | 120dots x 120dots | 144dots x 144dots | 192dots x 192dots |
| Pixel Density | 10000dots/sqm | 15625 dots/sqm | 22500 dots/sqm | 40000 dots/sqm |
| Minimum Viewing Distance | ≥10 m | ≥8 m | ≥6.67 m | ≥5 m |
| Brightness | 8000nits ~ 10000nits | 8000nits ~ 10000nits | 8000nits ~ 10000nits | 8000nits ~ 10000nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ |
| Gray Scale | 14bits ~ 16bits | 14bits ~ 16bits | 14bits ~ 16bits | |
| Viewing Angle | H:120°/ V:80° | H:120°/ V:80° | H:160°/ V:80° | H:160°/ V:160° |
| Maxmum Power Consumption | 560W/sqm | 560W/sqm | 560W/sqm | 560W/sqm |
| Average Power Consumption | 160W/sqm | 160W/sqm | 160W/sqm | 160W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 40KGS | 40KGS | 40KGS | 40KGS |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
Warranty
AlisenLED LED video walls feature a 3-5-years LED Standard Limited Warranty offering additional peace-of-mind investment protection.
|
|
