| MOQ: | Negotiable |
| Price: | Negotiable |
| Standard Packaging: | WoodenCase |
| Delivery Period: | 25 Working days |
| Payment Method: | T/T |

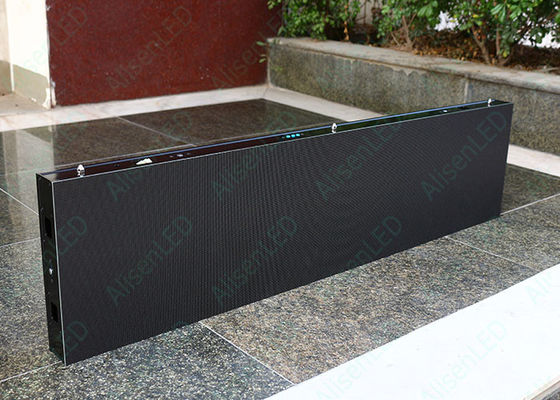

Full Color Indoor Fixed Wall Mounted LED Display Screen 1000mmx250mmcabinet
As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands.
Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with a humanized design is stronger, more light-weight, and precise. This LED panel is highly praised for a better user experience. The pixel pitches of this LED screen are SMD P1.9, P2.6, P2.9, and P3.9.
All electrical components: power supply, receiving card, and data cable are easily accessed from the front of the FA3 LED display. This design feature allows for direct wall mount installation.
The cabinet is available in two sizes:
1,000mm (39.4”) x 250mm (9.8”)
750mm (29.4”) x 250mm (9.8”)
250mm (9.8”) x 250mm (9.8”). This world’s smallest cabinet size provides flexibility when selecting your final LED display size. The LED display cabinets can be assembled at seamless 90˚ angles.
Gold aspect ratio: 4:3/16:9. Customized resolution: 1080p, 2K, 4K, 8K, etc. Wide Viewing Angle: 160°(H) | 160°(V)
They are achieved by an industry setting display refresh rate of 3,840Hz combined with a Grey Scale performance that reaches 24bits luminance intensity.
There are 3 ways for installation:
1. Hanging; 2. Stacking; 3. Mounting on the wall.
The cabinet options weigh 5.5kgs (12.1lbs) (1000mmx250mm) or 2kgs (4.4lbs)(250mmx250mm).
The LED display cabinet is 42mm (1.65'') thick.
It is one of the thinnest cabinets in the prevailing market, more cost-effective in installation space and steel structure.
This indoor LED panel is usually be used for:
| Item | P1.9 | P2.6 | P2.9 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm |
| Led Type | SMD1515/SMD1415(outdoor) | SMD1515/SMD1415(outdoor) | SMD2020/SMD1415(outdoor) | SMD2020/SMD1921(outdoor) |
| Module Resolution | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/32 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Module Pixels | 16,384 dots | 9,216 dots | 7,056 dots | 4,096 dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | 1000mm x 250mm or 250mm x 250mm | 1000mm x 250mm or 250mm x 250mm | 1000mm x 250mm or 250mm x 250mm | 1000mm x 250mm or 250mm x 250mm |
| Cabinet Resolution | 512dots x 128dots or 128dots x 128dots | 384dots x 96dots or 96dots x 96dots | 336dots x 84dots or 84dots x 84dots | 256dots x 64dots or 64dots x 64dots |
| Pixel Density | 262,144 dots/sqm | 147,456 dots/sqm | 112,896 dots/sqm | 65,536 dots/sqm |
| Minimum Viewing Distance | ≥1.9 m | ≥2.6 m | ≥2.9 m | ≥3.9 m |
| Brightness | 8,00nits ~ 1,200nits/2,000nits | 8,00nits ~ 1,200nits/2,000nits | 8,00nits ~ 1,200nits/2,000nits | 8,00nits ~ 1,200nits/2,000nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1920 ~ 3840HZ | 1920 ~ 3840HZ | 1920 ~ 3840HZ | 1920 ~ 3840HZ |
| Gray Scale | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits |
| Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° |
| Maxmum Power Consumption | 210W/sqm | 210W/sqm | 210W/sqm | 210W/sqm |
| Average Power Consumption | 60W/sqm | 60W/sqm | 60W/sqm | 60W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Cabinet Weight | 5.5 kg or 2kg/panel or 2kg/panel | 5.5 kg or 2kg/panel or 2kg/panel | 5.5 kg or 2kg/panel or 2kg/panel | 5.5 kg or 2kg/panel or 2kg/panel |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
|
|
